High Thermal Conductivity Liquid Cooled Plate Custom Flow Channel Design

минимальный заказ:	100 шт.
цена:	$100-$150
Стандартная упаковка:	Коробка из фанеры, специально предназначенная для экспорта
Срок доставки:	35 дней
Способ оплаты:	Т/Т, Л/К
Емкость поставок:	3000 шт/день

Детальная информация

Описание продукта

Детальная информация

Место происхождения

Китай, город Суцюань

Фирменное наименование

Trumony

Сертификация

ISO9001,IATF

Номер модели

Трумони-04243

Производственный процесс:

Пайка, экструзия, штамповка, ЧПУ,

Материал:

3003,4043

Размер:

Согласно требованию/дизайну клиентов

Приложение:

Аккумуляторная батарея электромобиля

Гарантия:

1 год

Название продукта:

пластина с жидкостным охлаждением

Выделить:

liquid cold plate high thermal conductivity

custom flow channel liquid cold plate

liquid cooled plate with warranty

Описание продукта

Products introduction:

Our high-performance liquid cooled plate is specially developed for AI data centers, high-density servers and high heat flux cooling demands. It is an efficient and low-resistance liquid cooling solution to stabilize server operation under long-duration high-load working conditions.

Made of high-quality aluminum alloy and fabricated by mature vacuum brazing technology, the liquid cooled plate features high thermal conductivity, compact structure and excellent sealing performance. Optimized internal flow channel design achieves fast heat exchange and even temperature distribution, effectively reducing hotspots and lowering overall energy consumption for data center cooling systems.

Strong customization capability is our core advantage. We provide full personalized customization, including overall dimensions, flow channel layout, interface type, installation structure and surface treatment. Whether you need standard specifications or non-standard tailored solutions, we can design and produce liquid cooled plates to perfectly match your server cabinet and liquid cooling system.

With strict air tightness testing and standardized quality control, our customized liquid cooled plate ensures stable, leak-free and durable operation all year round. It is the ideal customized liquid cooling component for modern high-efficiency and energy-saving data center infrastructure.

Product Parameter

Category	Details
Material Selection	Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used)
Key Processes	1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination
Structural Design	1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm
Performance	1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate
Cost	Typically RMB 27~35/kg, with relatively high tooling cost
Weight	Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area)
Lead Time	High design flexibility and short prototyping cycle
Maturity	Most widely adopted process, with >90% market share

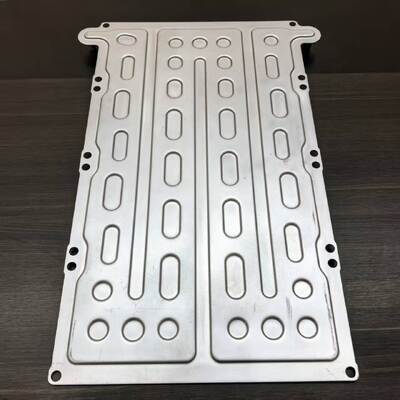

High Thermal Conductivity Liquid Cooled Plate Custom Flow Channel Design 0

Why Choose Us

Strong Production & Delivery Capacity
We are a direct manufacturer with two independent vacuum brazing production lines and a two-shift working system. Stable mass production ensures on-time delivery and flexible order fulfillment for global clients.
Professional R&D & One-Stop Service
Supported by an experienced technical team, we provide comprehensive solutions from customized design, structural optimization, sample verification to formal mass production, delivering one-stop services to meet your diverse cooling demands.
Strict Quality Control
Every liquid cooled plate undergoes precise dimensional inspection and 100% air tightness testing. Rigorous quality procedures guarantee leak-proof performance, high stability and long service life for long-term operation.
Rich Industry Experience
With more than 15 years of specialized experience in thermal cooling industry, our products have been exported to 56 countries worldwide. We possess mature expertise to serve EV, BESS, data center and industrial cooling projects.

FAQ:

Q: Are you a trading company or manufacturer?

A:Yes,we are a factory with more than 18 years history in this industry.

Q: What is your terms of payment ?

A: Normally 100% T/T In advance,But this is something that can be negotiated.

Q: How long does it take for samples and mass production?

A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!
