Product Overview

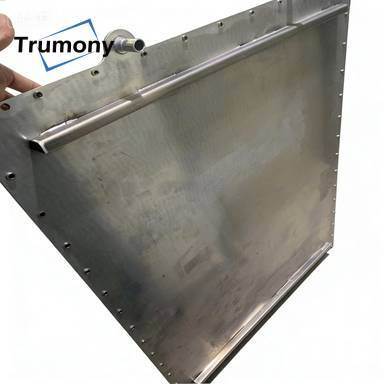

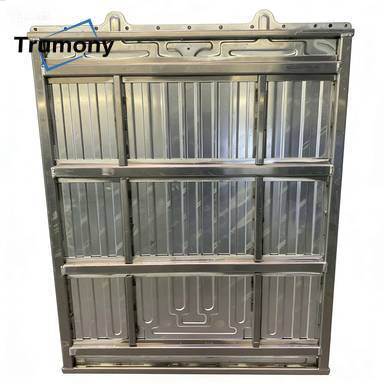

This liquid cooling plate is specially designed for energy storage battery packs. Made of high-quality aluminum alloy for excellent heat conductivity, it is precisely matched to 1P48S configuration and 314 cells, while the integrated steel frame enhances structural stability and load-bearing capacity. It efficiently dissipates heat to maintain stable battery temperature, ensuring long-term reliable operation of energy storage systems.
Technical Specifications:
| Performance |
parameter |
unit |
| Alloy |
3003mod |
/ |
| Regular size |
flow plate 1.2 mm;flat plate 1.5 mm;flow height 3mm |
mm |
| Temperature difference |
3~5 |
℃ |
| Flow resistance |
15 |
Kpa |
| Charge and discharge rate |
0.5 |
c |
| Application |
Energy storage battery pack |
|
Applications
Industrial and commercial energy storage systems
Grid-scale energy storage power stations
Wind and solar energy storage systems
Microgrid energy storage projects
Large-scale stationary battery energy storage systems
Backup power and UPS energy storage solutions
New energy power generation supporting energy storage
Why Choose Us
1. Large production capacity - ensures stable supply
2. Complete process - fully controllable throughout, fast delivery
3. High professionalism - rich experience, high project success rate
4. Excellent single-process performance - cost-effective, high quality
5. Can be optimized with standard models - low development cost, fast delivery
FAQ
Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?
A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.
Q2:What else can we offer?
A2:The box body and related products such as top cover ,end plate and pipelines are available.
Q3:MOQ
A3In fact, there is no (MOQ). Customized samples can also be provided.
Q4:What technical capabilities do we have?
A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation
Q5:General delivery time
A5:The sample stage: 40 -45 days.Mass production stage: 35 days
